Easy to use
KEY FEATURES
Safe and reliable
IP67
Multiple use
• Fast charging speed
• Peak shifting and valley filling
• Using A-grade lithium iron phosphate battery
• Intelligent monitoring
MAIN PARAMETERS
-

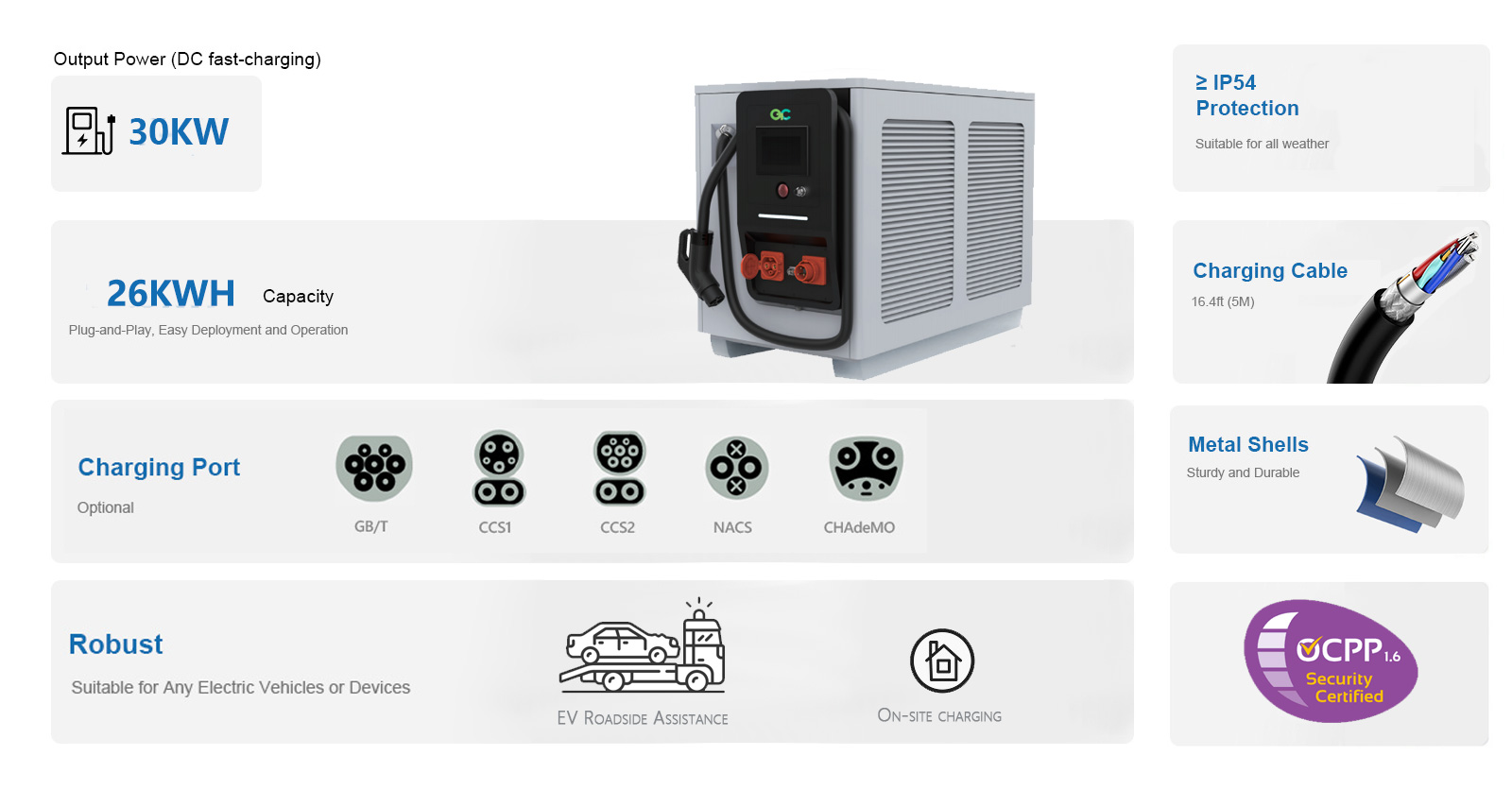

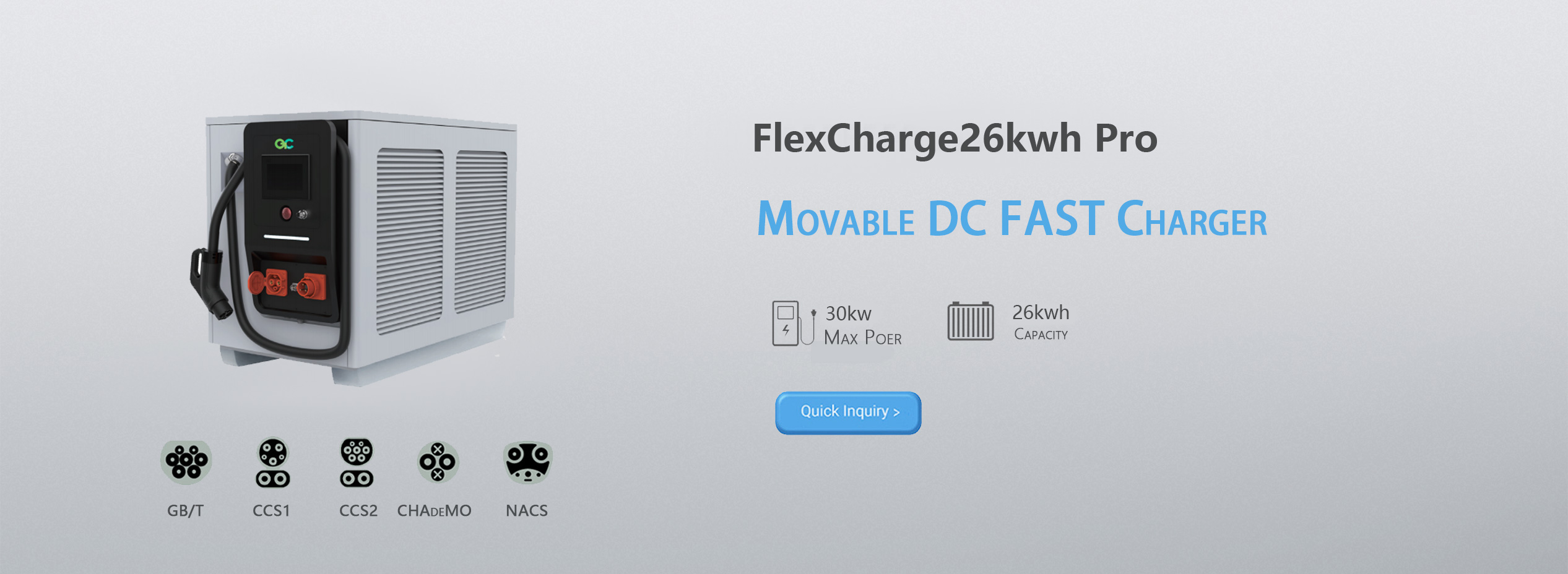

FlexCharge26kwh Pro
This mobile energy storage stack charging pile consists of 1 control module + 3 battery modules + 1 charger module, with a maximum capacity of 26kwh and a maximum power of 30kw.
-
26kWh丨30kW | Support CCS1/CCS2 | DC output DC220V-530V
-
26KWh battery capacity and 30kW DC fast charging gun
-
Small size, mobile and fast charging
-

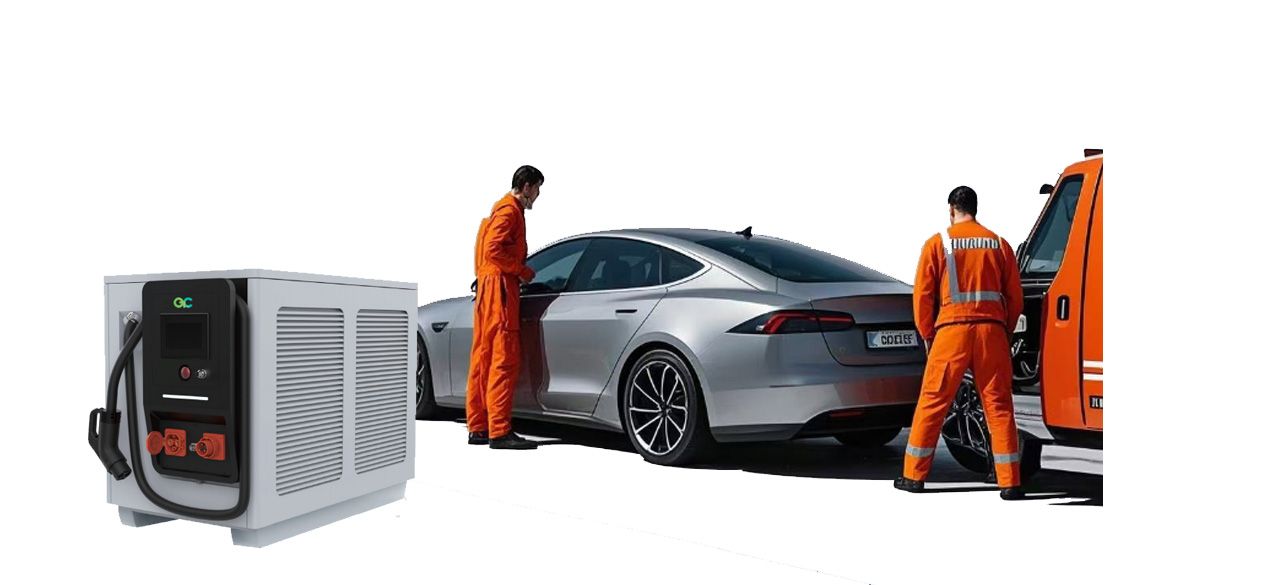

Can be used in multiple scenarios such as road rescue and emergency power supply
-
With CCS1/CCS2 industrial charging socket
-
Good waterproof performance
Main Parameters
Category
ltem
Technical Parameters
BES Rated power 26kWh Rated voltage 192V~380V Temperature control scheme Liquid cooling Charging gun parameters Charging gun output power 30KW Charging gun output current 0-100A Charging gun output voltage range (Vdc) DC200V-1000V Communication protocol OCPP 1.6J Charging management HMI 4.3-inch touch screen Energy replenishment method DC input (CCS1, CCS2 charging station optional) AC input AC220V/3.3kw Other parameters Operating temperature range 20℃~60℃ Storage temperature range 0~40℃ Battery module size 550*370*160mm Protection level ≥IP54 Control module weight 25kg Dimensions (L*W*H) 1350mm*710mm*980mm Battery module weight 500Kg Casing material Metal Noise decibel ＜40db -
