iTrailer

KEY FEATURES

Convenient

Touch screen

Easy to operate

Safety

IP54

Intelligent prevention and control

Easy to move

Remote control driving

Can pass speed bumps

MAIN PARAMETERS

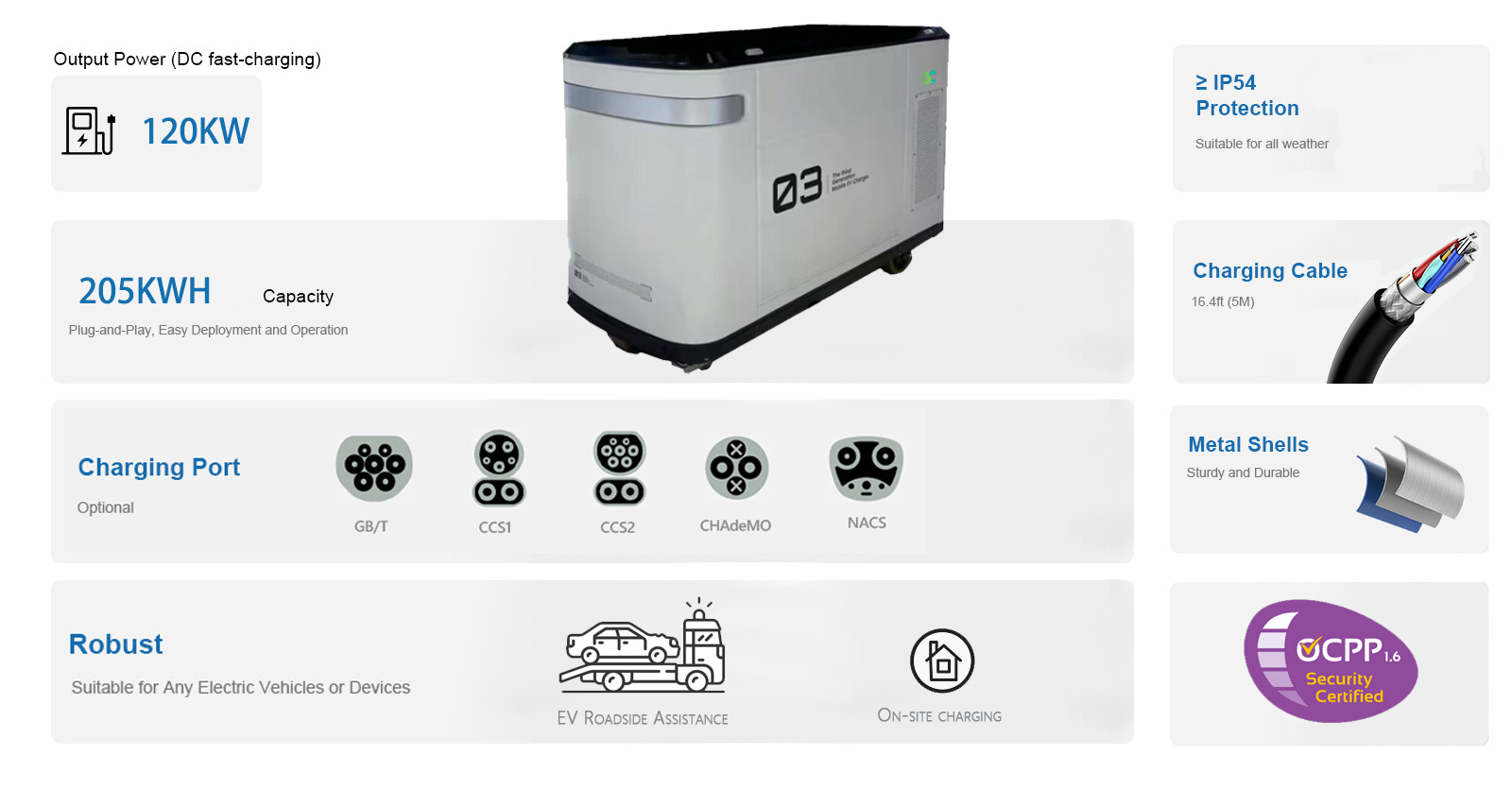

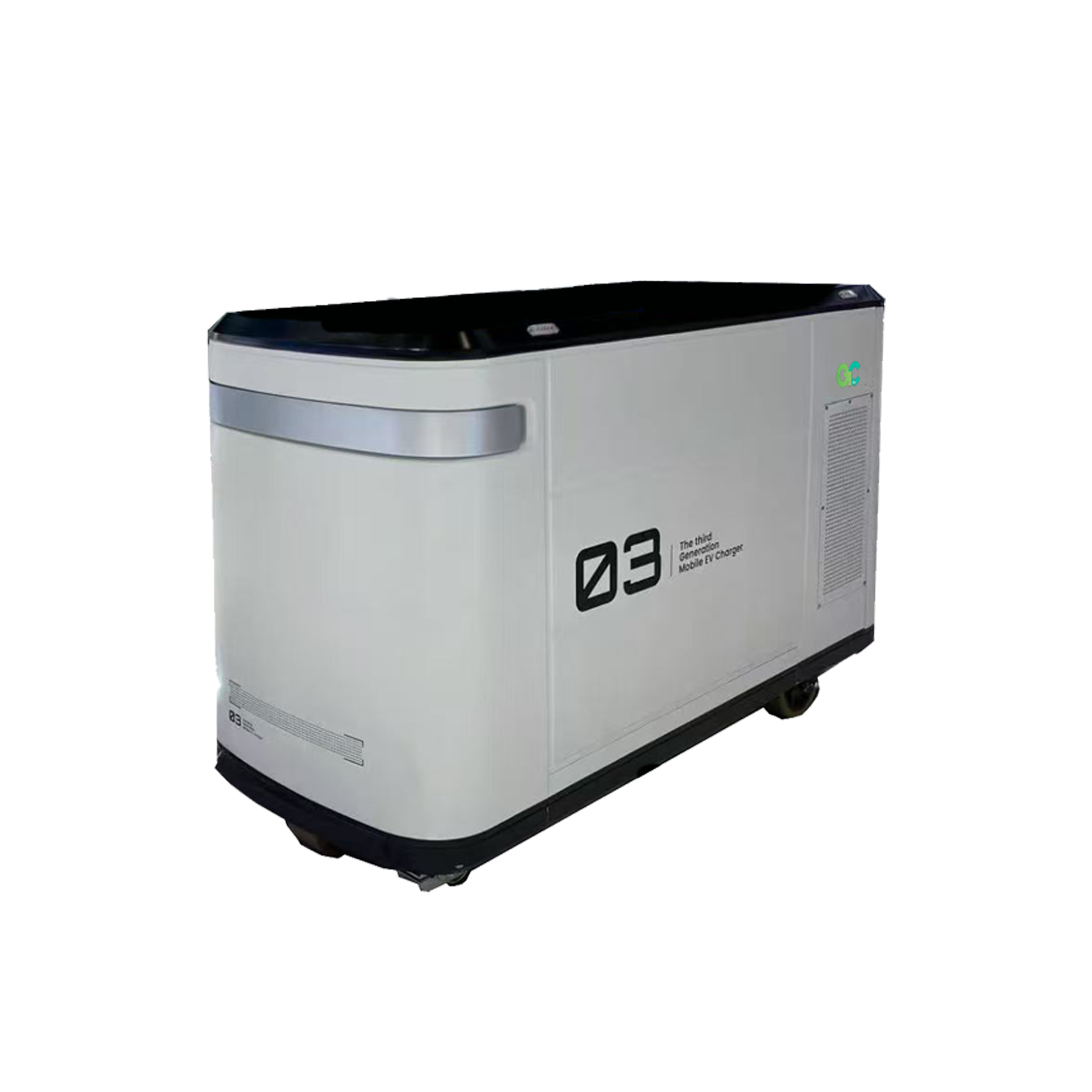

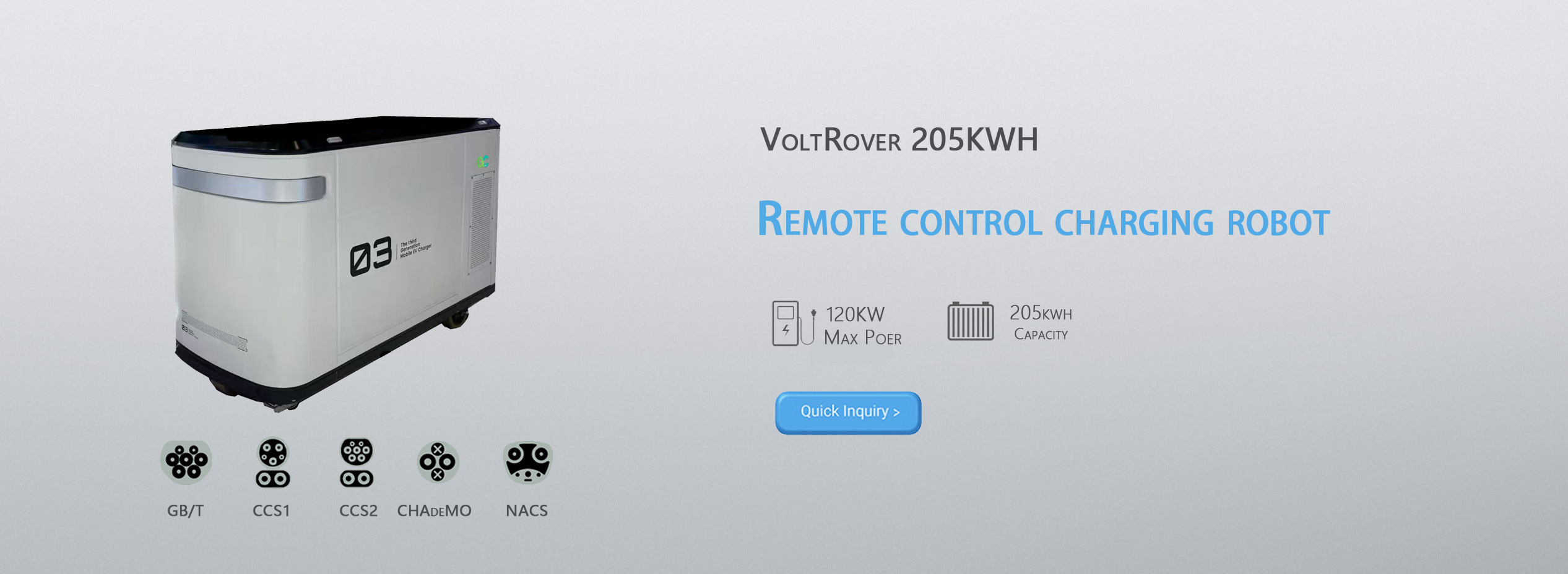

  • VoltRover 205KWH



    This product is equipped with a 205kWh large-capacity energy storage system and a 120kW high-efficiency charging module, and with an intelligent dispatching system, it can provide 24-hour unattended service.

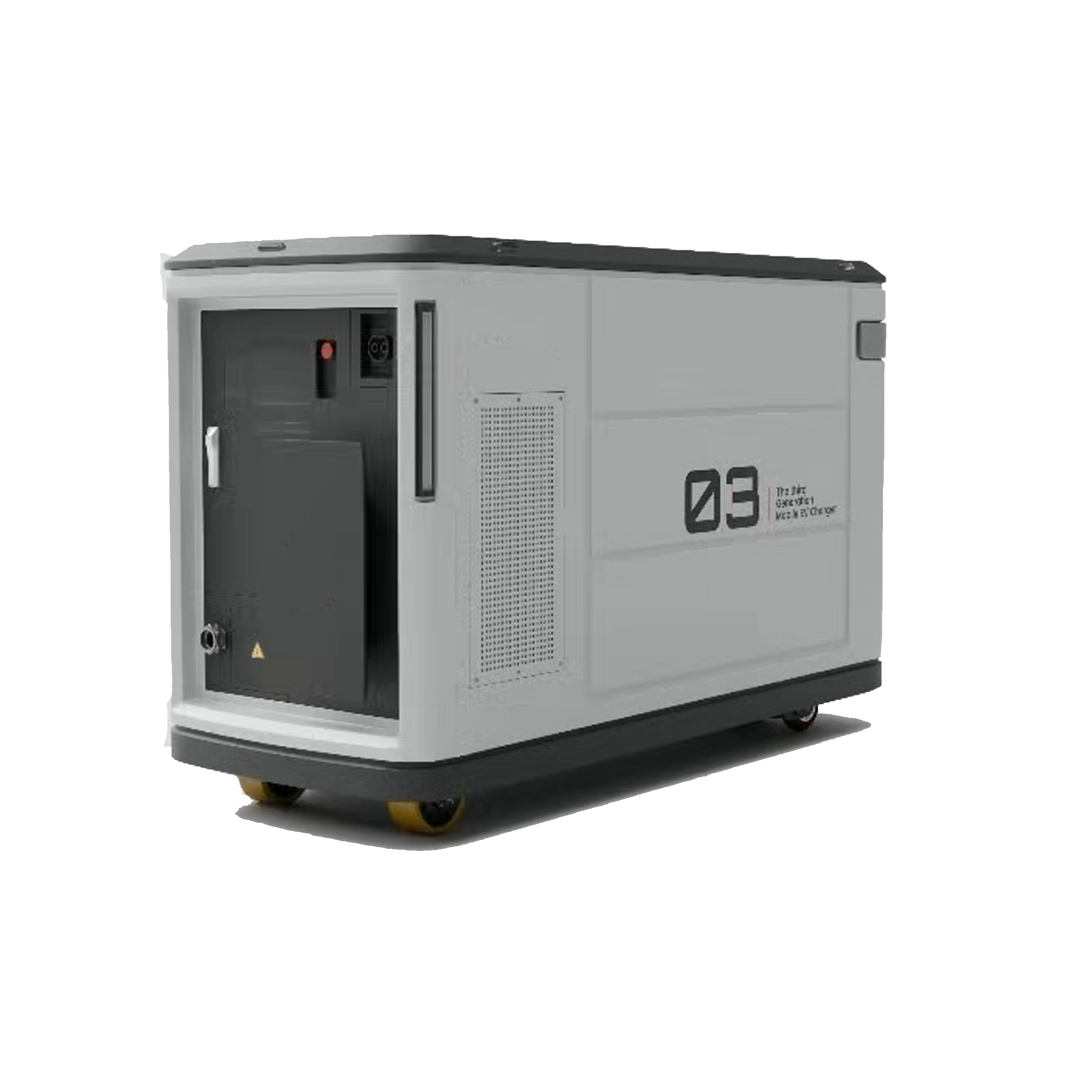

    charging vehicle





    • 205kwh | 120kw | Remote control driving

    • Efficient business management

    • Convenient intelligent control

    • Stable business guarantee and secure data mechanism











    Main Parameters

    Category

    ltem

    Technical Parameters

    Charging pile parameters Rated power 205KWH
    Temperature control scheme Liquid Cooling
    Charging gun output power 120KW
    Charging gun output current 0-250A
    Charging gun output voltage range (Vdc) DC200V~1000V
    Communication protocol OCPP 1.6J
    Charging method DC input 120KW
    AC input  AC380V
    Other parameters Operating temperature range -20℃~50℃
    Protection level ≥IP54
    Dimensions (L*W*H) 2100*1100*1500mm
    Weight 2300Kg
    Payment system VPOS/VISA/ MASTER/OCPP1.6J
    Gun line length 7M
    Maximum speed 4KM/H
    Maximum climbing grade 0.08
