KEY FEATURES

Core Features

Customized Design

High performance charging

Intelligent management

Protection level

IP545

-35°C~+75°C~

Support customization

OCPP1.6

GBT|CCCS2!|CHAdeMO|CCS1|NACS

MAIN PARAMETERS

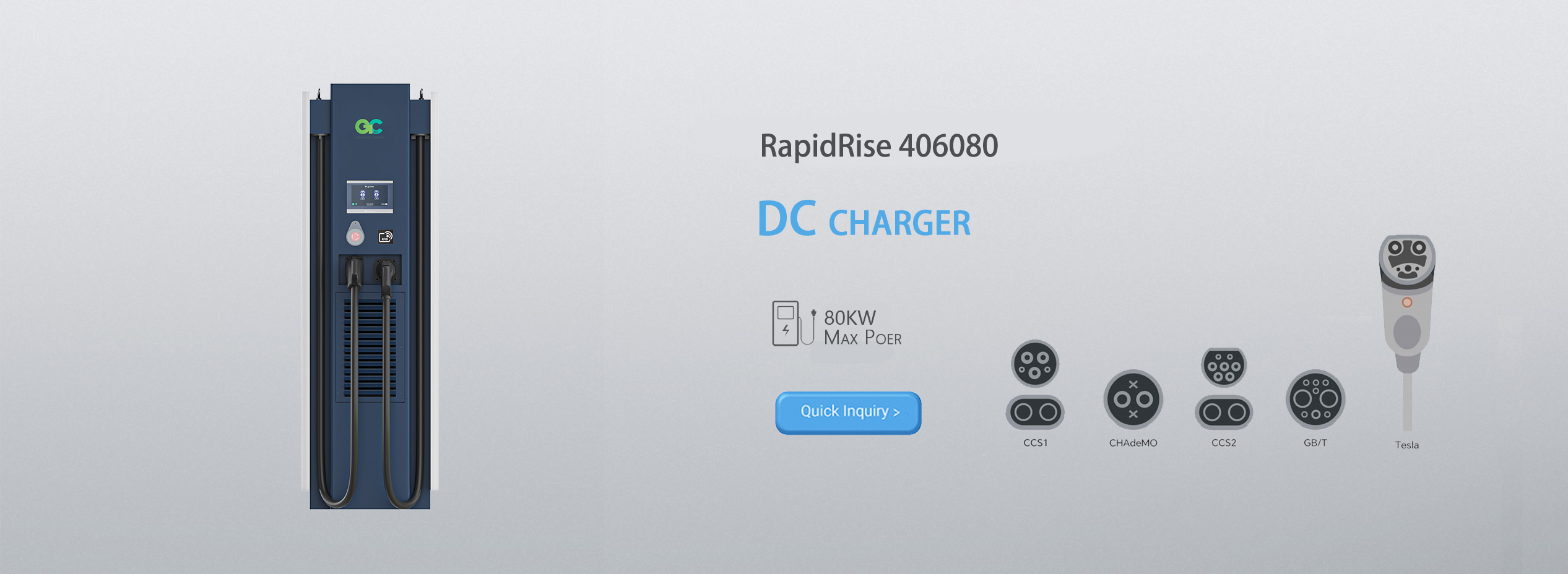

  • RapidRise 406080



    The standard 60kW power support can be expanded to 80kW to meet diverse charging needs; intelligent management and modular design further enhance the practicality and economy of the equipment.

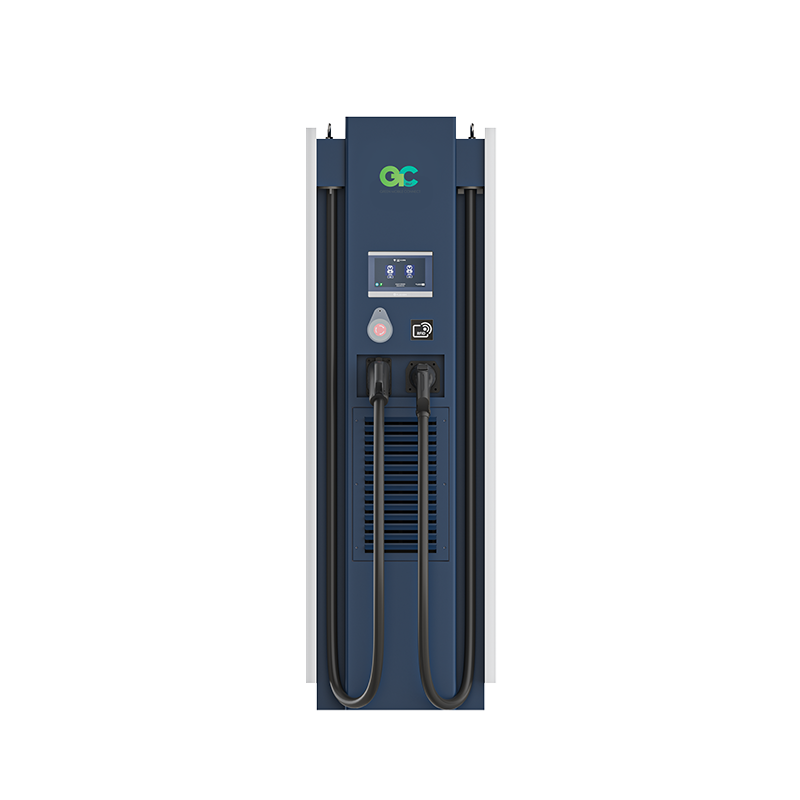

    charging vehicle





    • 40KW/60KW/80KW|GBT|CCCS2!|CHAdeMO|CCS1|NACS

    • Easy installation

    • Modular design facilitates maintenance and replacement

    • Support Mobile phone app remote monitoring and control

    • Humanized design: the operation interface is simple and intuitive

    View Video

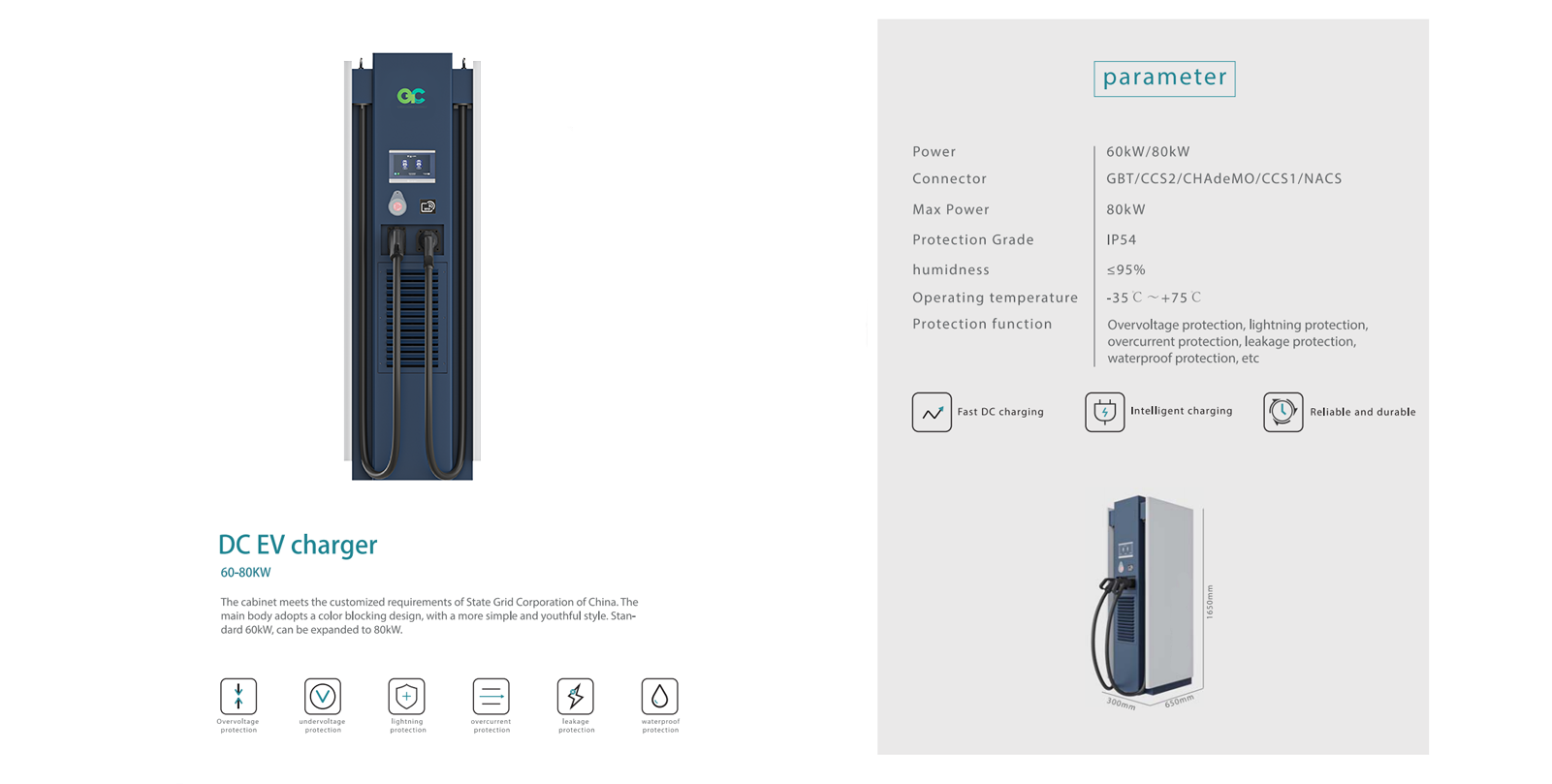

    Main Parameters

    Category

    ltem

    Technical Parameters

    Charging pile parameters Input rated voltage 380Vac±15%, 50±1Hz
    Input power L1+L2+L3+N+PE
    Output power 60kW/80kW max
    Output voltage 200-1000Vdc Constant power range: 300-1000Vdc1000Vdc
    Output voltage error ≤±0.5%
    Total harmonic current ≤5%
    Other parameters Status indication RGB LED,7-inch HDMI display
    Communication mode 4G/Ethernet
    Operating temperature -35℃~75℃
    Protection level ≥IP54
    Dimensions (length * width * height) 300*650*1650mm
    Connector GBT/CCS2/CHAdeMO/CCS1/NACS
