Flexible multi-gun configuration
KEY FEATURES
Protection level
IP54
-35℃~75°C
Support customization
OCPP1.6
GBT|CCCS2!|CHAdeMO|CCS1|NACS
MAIN PARAMETERS
-

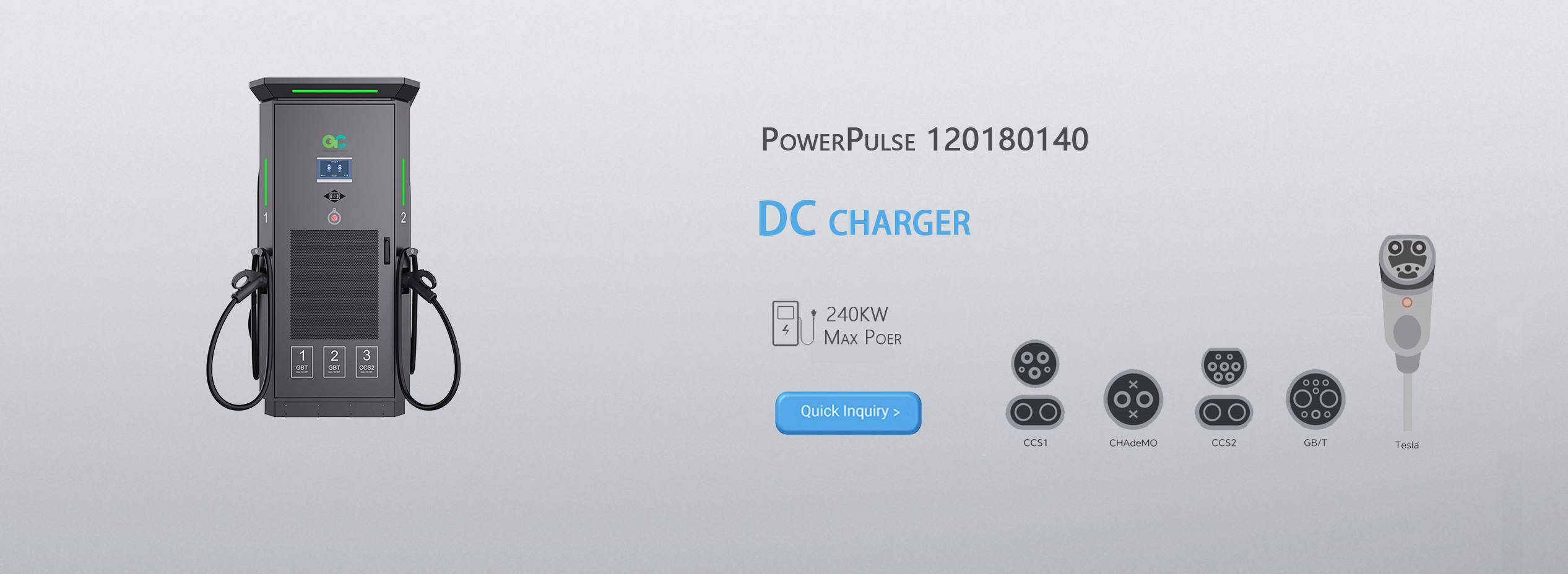

PowerPulse 120180240

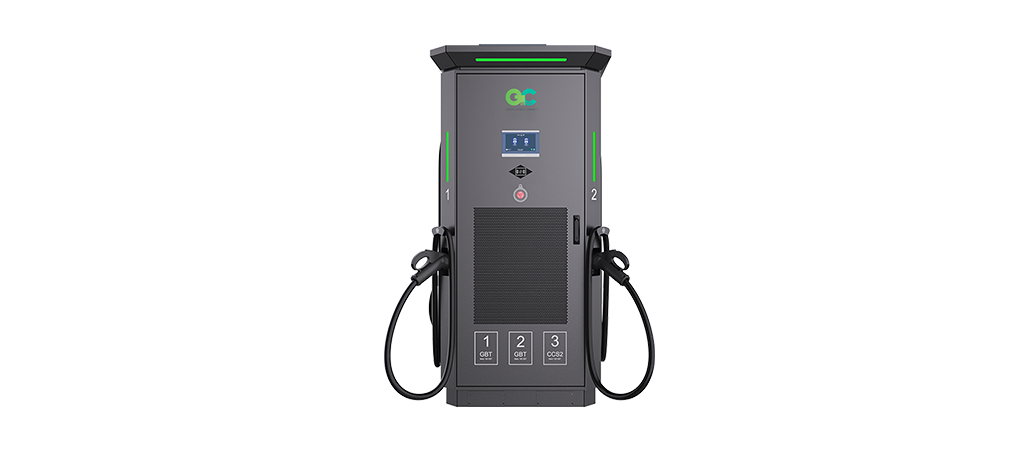

This high-power multi-gun DC charging station is an ideal choice for areas with intensive charging demand due to its flexible configuration, efficient performance and wide applicability.
-
120KW/180KW/240KW|GBT|CCCS2!|CHAdeMO|CCS1|NACS
-
Using the latest charging technology, supporting fast DC charging, greatly shortening charging time
-
Built-in intelligent charging management system supports remote monitoring, fault diagnosis and data analysis.
-

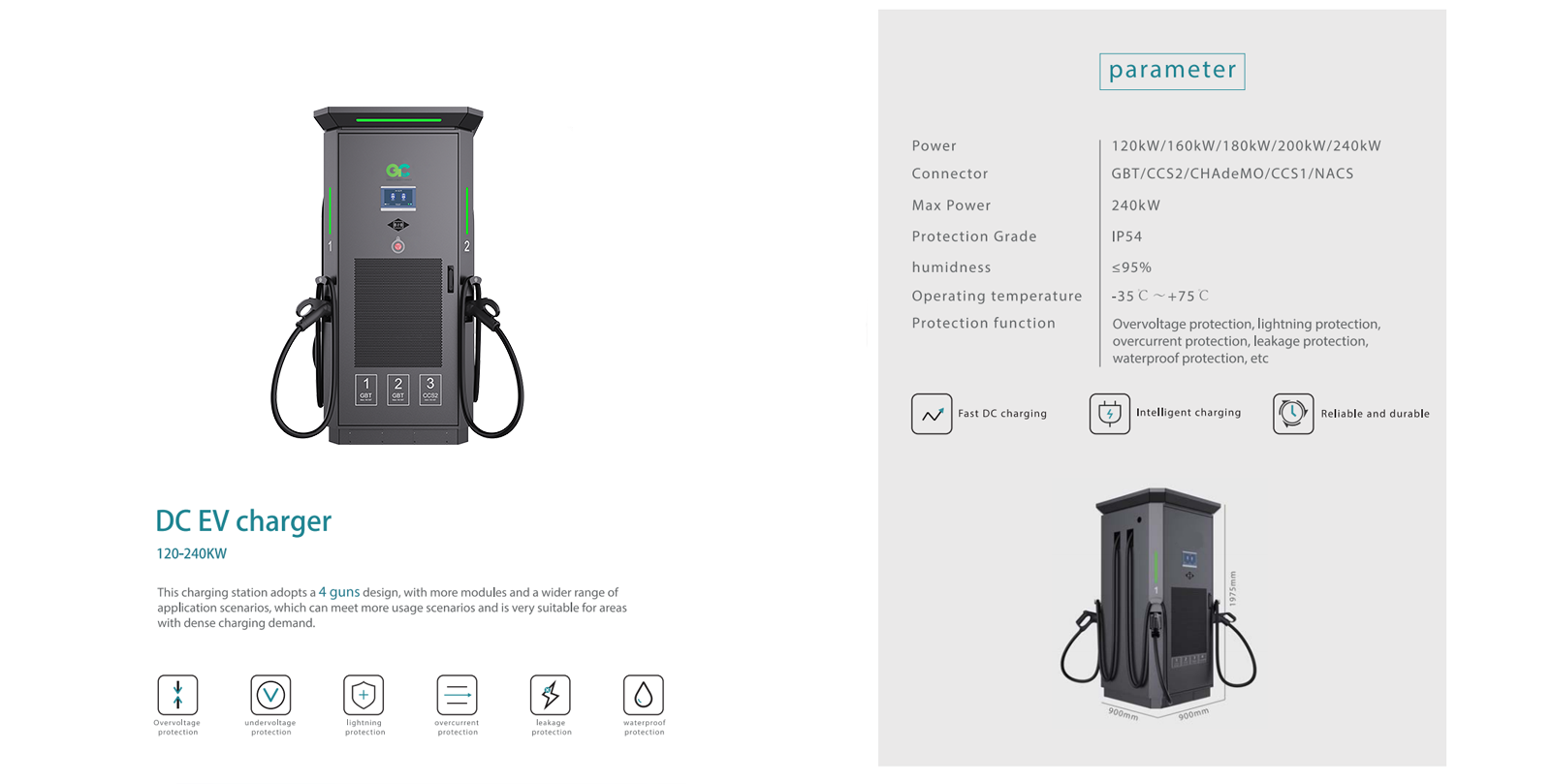

Main Parameters
Category
ltem
Technical Parameters
Charging pile parameters Input rated voltage 380Vac±15%, 50±1Hz Input power L1+L2+L3+N+PE Output power 120kw/180kw/240kw max Output voltage 200-1000Vdc Constant power range: 300-1000Vdc1000Vdc Output voltage error ≤±0.5% Total harmonic current ≤5% Other parameters Status indication RGB LED 7-inch HDMI display Communication mode 4G/Ethernet Operating temperature -35℃~75℃ Protection level ≥IP54 Dimensions (length * width * height) 900*900*1975mm Connector GBT/CCS2/CHAdeMO/CCS1/NACS -
