KEY FEATURES

Main Features

Flexible charging terminal configuration

High power output

Wide range of application scenarios

Intelligent management

Protection level

IP54

-35°C ~+75°C

Support customization

OCPP1.6

GBT/CCS2/CHAdeMO/CCS1/NACS

MAIN PARAMETERS

  • AmpForce 600

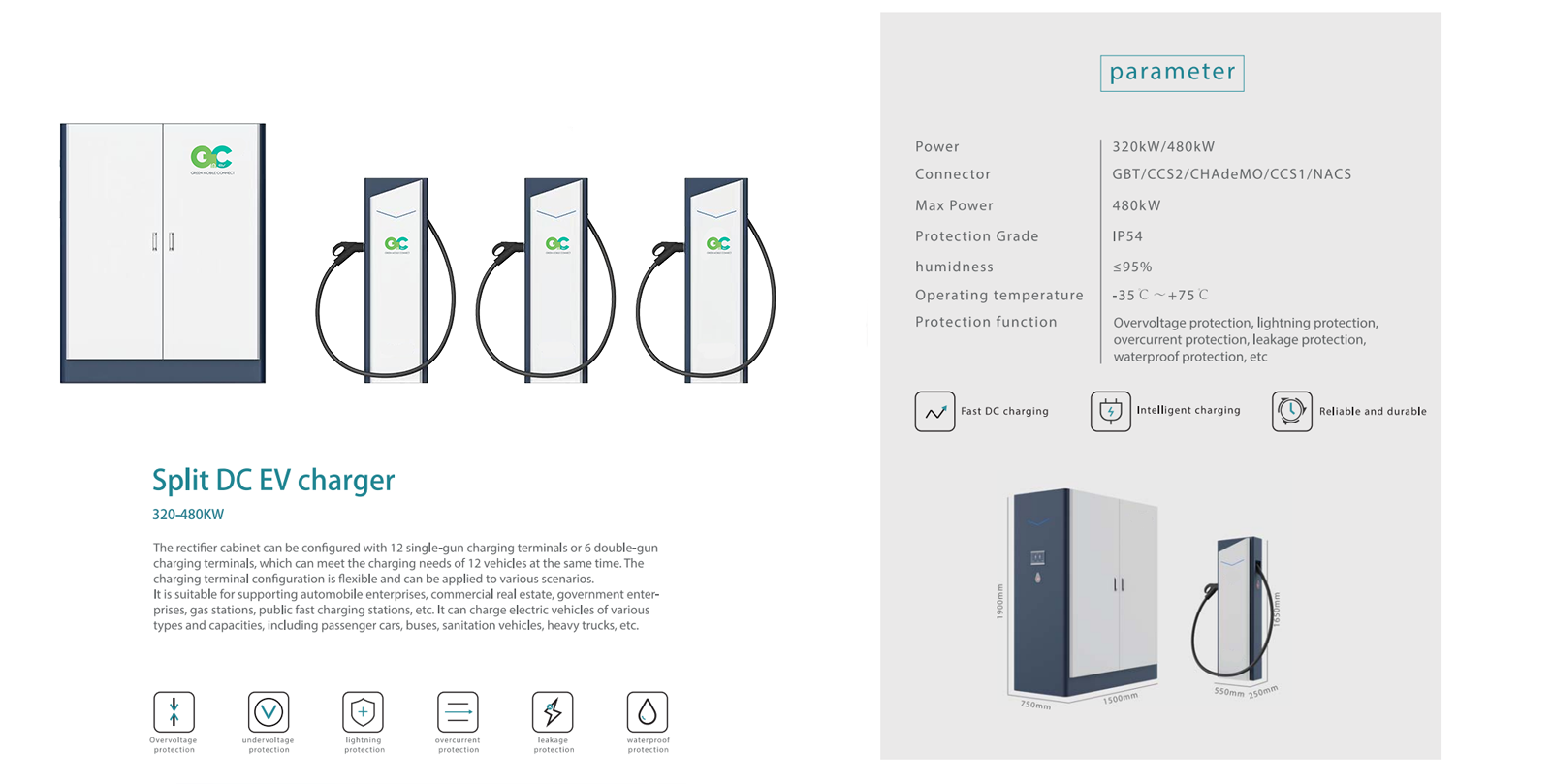

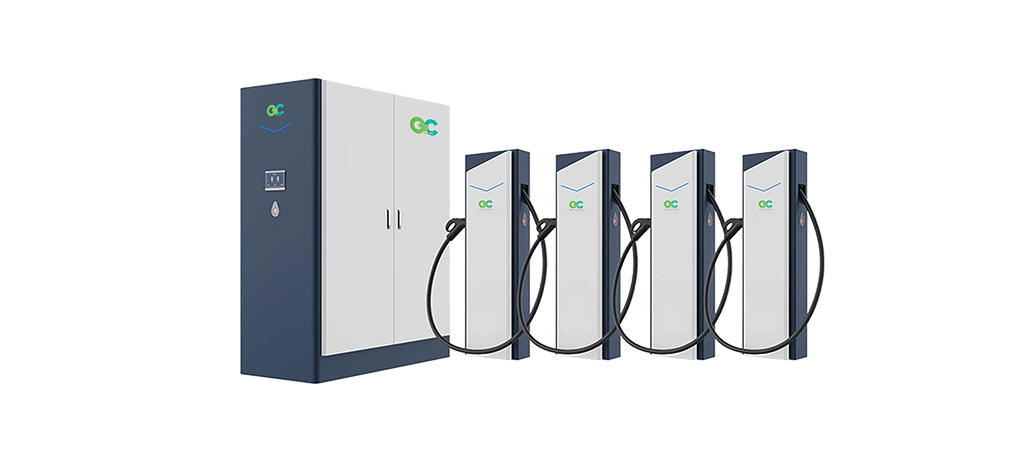

    The rectifier cabinet can be configured with 12 single-gun charging terminals or 6 double-gun charging terminals, supporting charging of 12 electric vehicles at the same time.

    charging vehicle





    • 320KW/480KW/600KW|GBT|CCCS2!|CHAdeMO|CCS1|NACS

    View Video









    Main Parameters

    Category

    ltem

    Technical Parameters

    Charging pile parameters Input rated voltage 380Vac±15%, 50±1Hz
    Input power L1+L2+L3+N+PE
    Output power 320kw/480kw max
    Output voltage 200-1000Vdc Constant power range: 300-1000Vdc1000Vdc
    Output voltage error ≤±0.5%
    Total harmonic current ≤5%
    Other parameters Status indication RGB LED,7-inch HDMI display
    Communication mode 4G/Ethernet
    Operating temperature -35℃~75℃
    Protection level ≥IP54
    Dimensions (length * width * height) 1500*750*1900mm/550*250*1650mm
    Connector GBT/CCS2/CHAdeMO/CCS1/NACS
