KEY FEATURES

Main Features

Credit Card

Plug and Play

Application Control

Protection level

CE（EN61851）

UKCA

RoHS

TUV

CB

IP65, wind and rain proof; leakage protection;

Support customization

Customized LOGO

MAIN PARAMETERS

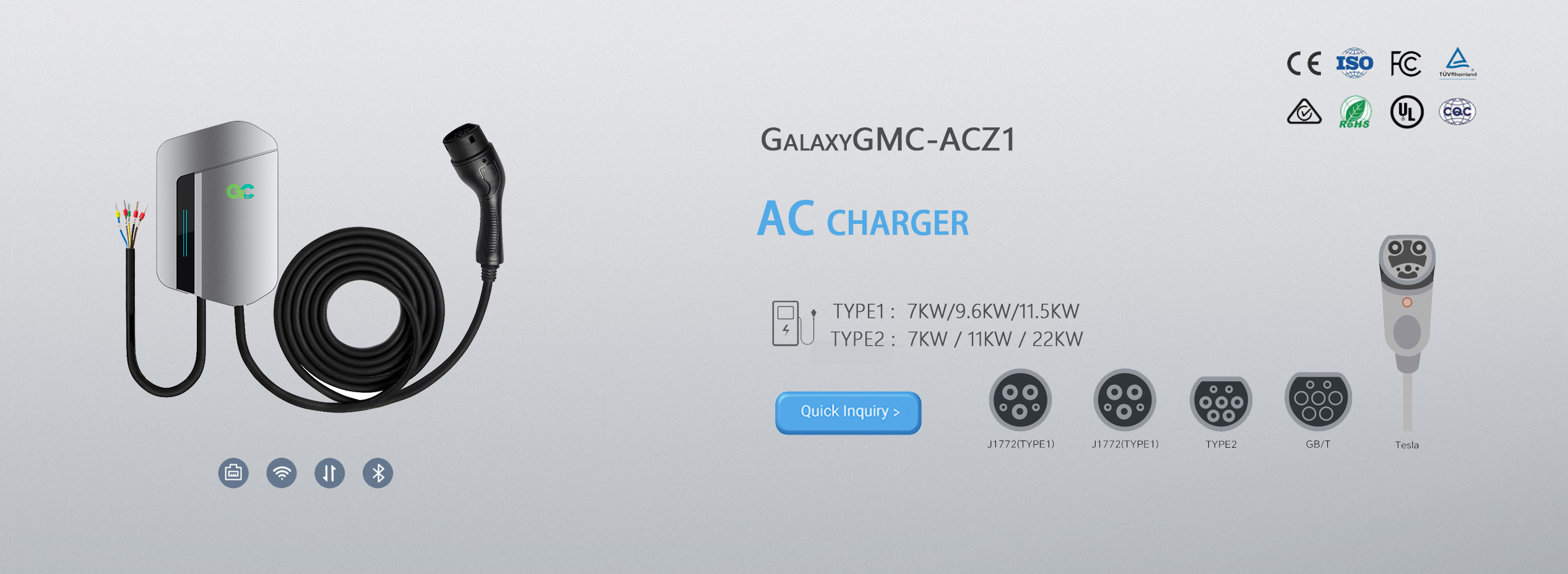

  • GalaxyGMC-ACZ1



    Galaxy series intelligent AC charging piles are made of aerospace-grade alloy forging, nano-level precision die-casting, and seamless integrated architecture; the honeycomb protective cabin is fearless of extreme temperature and dust;

    charging vehicle





    • J1772(TYPE1）|TYPE2 |GB/T|NACS











    Main Parameters

    Category

    ltem

    Technical Parameters

    7KW Type 2 IEC 62196 Maximum power 7kW
    Output current 8A/10A/13A/16A/22A/32A
    Input/output voltage 100-240VAC 50/60Hz 1Phase
    Charging port IEC 62196 Type 2
    IP rating IP65
    Operating temperature -25°C-+50°C
    11KW Type 2 IEC 62196 Maximum power 11kW
    Output current 8A/10A/13A/16A
    Input/output voltage 400VAC 50/60Hz 3Phase
    Charging port IEC 62196 Type 2
    IP rating IP65
    Operating temperature -25°C-+50°C
    Cable length 5M
    22KW Type 2 IEC 62196 Maximum power 22kW
    Output current 8A/10A/13A/16A/22A/32A
    Input/output voltage 400VAC 50/60Hz 3Phase
    Charging port IEC 62196 Type 2
    IP rating IP65
    Operating temperature -25°C-+50°C
    Cable length 5M
    7KW Type 1 SAE J1772 Maximum power 7KW
    Output current 8A/10A/13A/16A/22A/32A
    Input/output voltage 100~240VAC 50/60Hz1Phase
    Charging port SAE J1772 Type 1
    IP rating IP65
    Operating temperature -25°C-+50°C
    Cable length 7.5M
    9.6KW Type 1 SAE J1772 Maximum power 9.6KW
    Output current 10A/16A/24A/32A/40A/48A
    Input/output voltage 100~240VAC 50/60Hz1Phase
    Charging port SAE J1772 Type 1
    IP rating IP65
    Operating temperature -25°C-+50°C
    Cable length 7.5M
    11.5KW Type 1 SAE J1772 Maximum power 11.5KW
    Output current 10A/16A/24A/32A/40A/48A
    Input/output voltage 100~240VAC 50/60Hz1Phase
    Charging port SAE J1772 Type 1
    IP rating IP65
    Operating temperature -25°C-+50°C
    Cable length 7.5M
