Main Features
KEY FEATURES
Protection level
CE (en61851), UK CA, RoHS, T UV, CB
Leakage protection: Type B (RCD 30mA AC+6mA DC)
IP65, wind and rain proof; leakage protection;
Support customization
LOGO customization
MAIN PARAMETERS
-

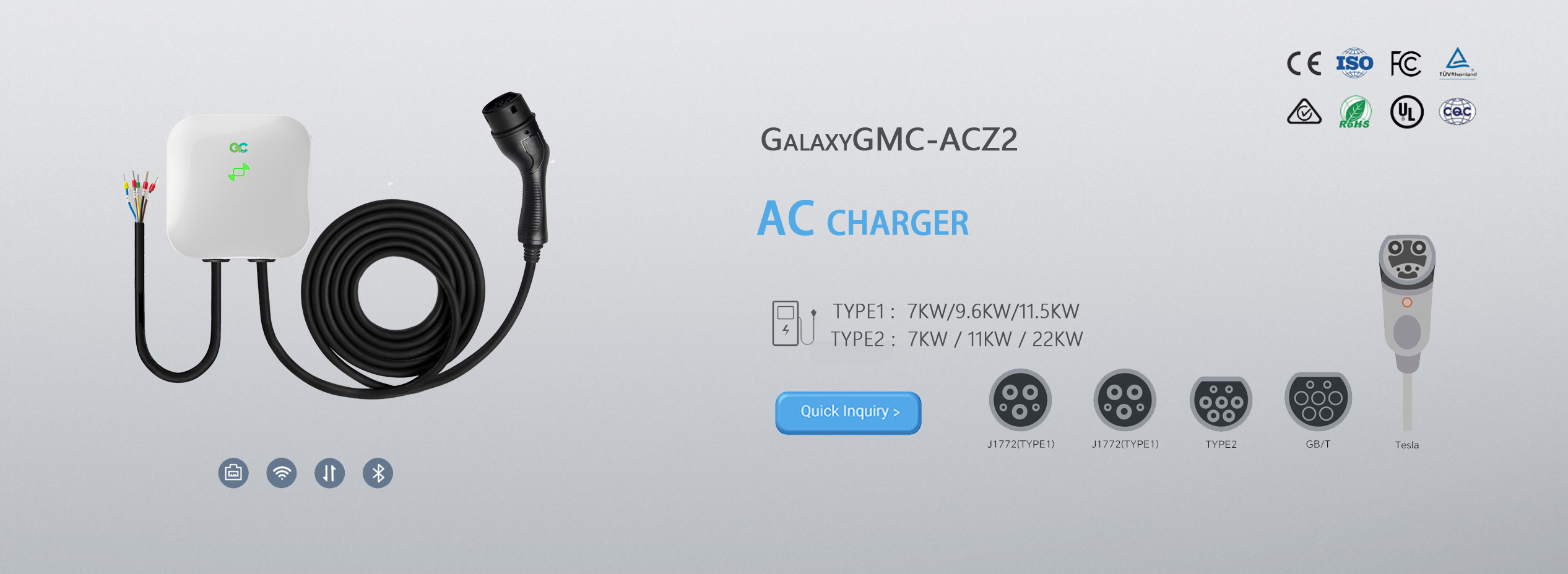

GalaxyGMC-ACZ2
Galaxy series intelligent AC charging piles are made of aerospace-grade alloy forging, nano-level precision die-casting, and seamless integrated architecture; the honeycomb protective cabin is fearless of extreme temperature and dust;
-
J1772(TYPE1）|TYPE2 |GB/T|NACS
Main Parameters
Category
ltem
Technical Parameters
7KW Type 2 IEC 62196 Maximum power 7kW Output current 8A/10A/13A/16A/22A/32A Input/output voltage 100-240VAC 50/60Hz 1Phase Charging port IEC 62196 Type 2 IP rating IP65 Operating temperature -25°C-+50°C 11KW Type 2 IEC 62196 Maximum power 11kW Output current 8A/10A/13A/16A Input/output voltage 400VAC 50/60Hz 3Phase Charging port IEC 62196 Type 2 IP rating IP65 Operating temperature -25°C-+50°C Cable length 5M 22KW Type 2 IEC 62196 Maximum power 22kW Output current 8A/10A/13A/16A/22A/32A Input/output voltage 400VAC 50/60Hz 3Phase Charging port IEC 62196 Type 2 IP rating IP65 Operating temperature -25°C-+50°C Cable length 5M 7KW Type 1 SAE J1772 Maximum power 7KW Output current 8A/10A/13A/16A/22A/32A Input/output voltage 100~240VAC 50/60Hz1Phase Charging port SAE J1772 Type 1 IP rating IP65 Operating temperature -25°C-+50°C Cable length 7.5M 9.6KW Type 1 SAE J1772 Maximum power 9.6KW Output current 10A/16A/24A/32A/40A/48A Input/output voltage 100~240VAC 50/60Hz1Phase Charging port SAE J1772 Type 1 IP rating IP65 Operating temperature -25°C-+50°C Cable length 7.5M 11.5KW Type 1 SAE J1772 Maximum power 11.5KW Output current 10A/16A/24A/32A/40A/48A Input/output voltage 100~240VAC 50/60Hz1Phase Charging port SAE J1772 Type 1 IP rating IP65 Operating temperature -25°C-+50°C Cable length 7.5M -
