KEY FEATURES

Main Features

APP

OCPP

Schedule charging

Security certification

CE（EN61851）、UKCA、RoHS、TUV、CB、ETL

Leakage protection: Type B (RCD 30mA AC+6mA DC)

IP65, wind and rain proof; leakage protection;

Support customization

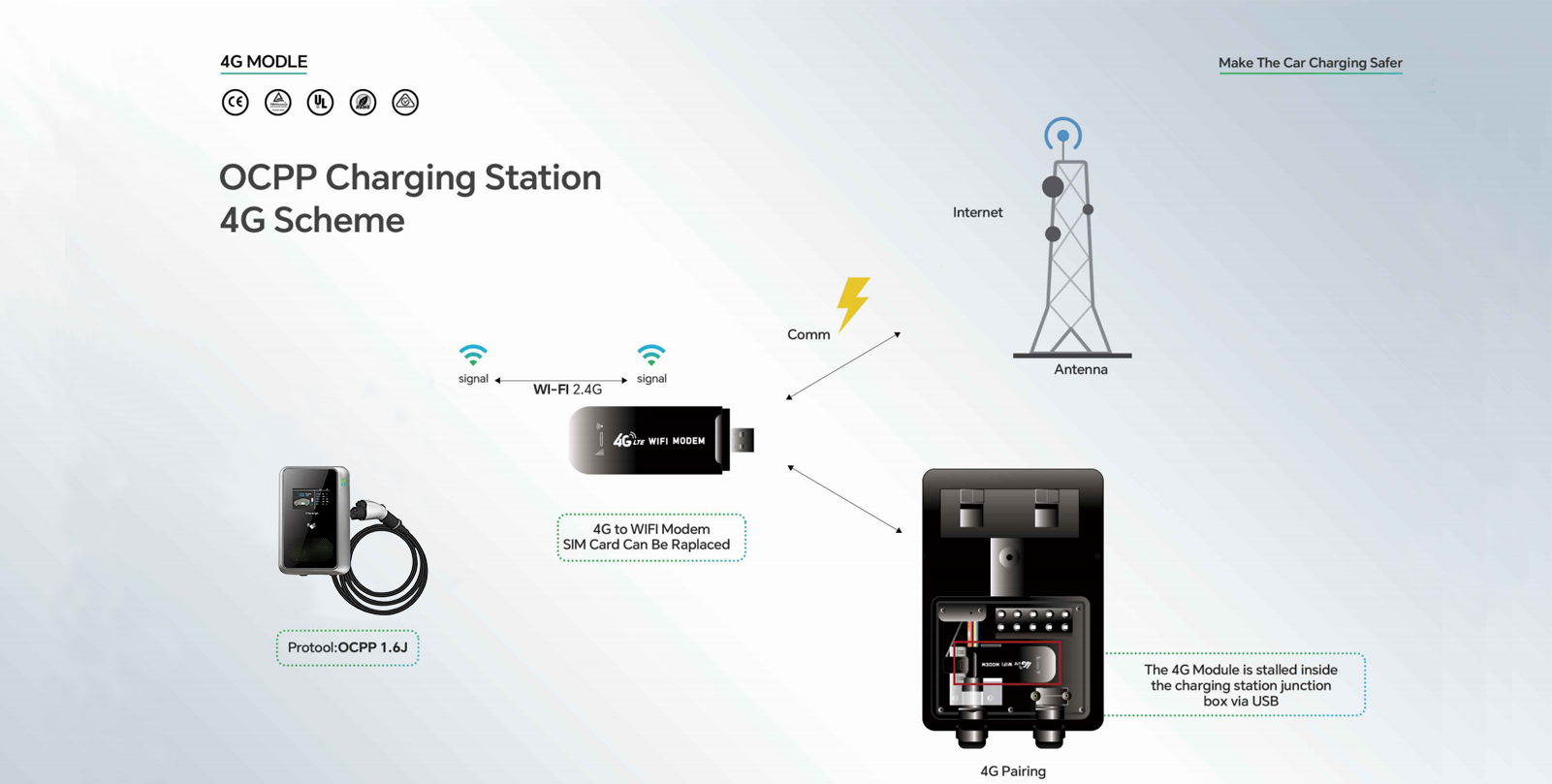

OCPP

LOGO

MAIN PARAMETERS

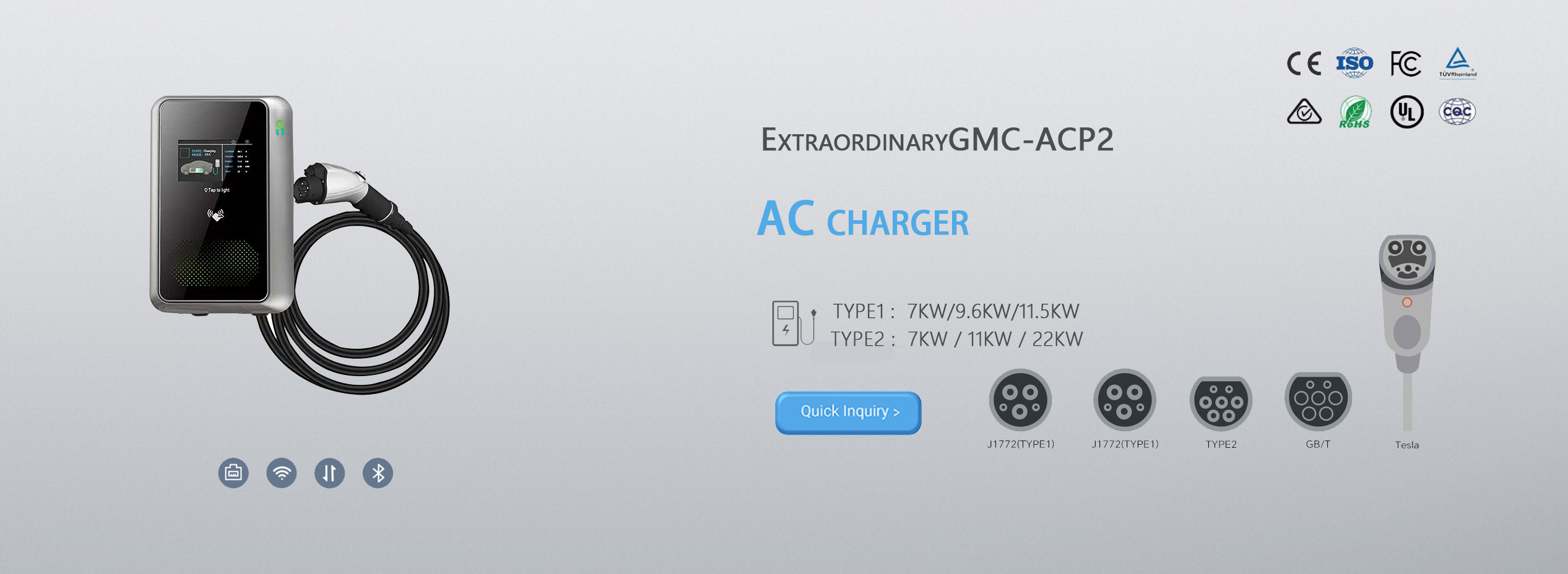

  • ExtraordinaryGMC-ACP2



    Extraordinary series smart charging piles are all equipped with OCPP1.6 modules as standard, with a wide voltage input of 100~240Vac to adapt to more charging scenarios, and an operating temperature of -25~+65℃.

    charging vehicle





    • J1772(TYPE1）|TYPE2 |GB/T|NACS











    Main Parameters

    Category

    ltem

    Technical Parameters

    7KW Type 2 IEC 62196 Maximum power 7kW
    Output current 8A/10A/13A/16A/22A/32A
    Input/output voltage 100-240VAC 50/60Hz 1Phase
    Charging port IEC 62196 Type 2
    IP rating IP65
    Operating temperature -25°C-+50°C
    11KW Type 2 IEC 62196 Maximum power 11kW
    Output current 8A/10A/13A/16A
    Input/output voltage 400VAC 50/60Hz 3Phase
    Charging port IEC 62196 Type 2
    IP rating IP65
    Operating temperature -25°C-+50°C
    Cable length 5M
    22KW Type 2 IEC 62196 Maximum power 22kW
    Output current 8A/10A/13A/16A/22A/32A
    Input/output voltage 400VAC 50/60Hz 3Phase
    Charging port IEC 62196 Type 2
    IP rating IP65
    Operating temperature -25°C-+50°C
    Cable length 5M
    7KW Type 1 SAE J1772 Maximum power 7KW
    Output current 8A/10A/13A/16A/22A/32A
    Input/output voltage 100~240VAC 50/60Hz1Phase
    Charging port SAE J1772 Type 1
    IP rating IP65
    Operating temperature -25°C-+50°C
    Cable length 7.5M
    9.6KW Type 1 SAE J1772 Maximum power 9.6KW
    Output current 10A/16A/24A/32A/40A/48A
    Input/output voltage 100~240VAC 50/60Hz1Phase
    Charging port SAE J1772 Type 1
    IP rating IP65
    Operating temperature -25°C-+50°C
    Cable length 7.5M
    11.5KW Type 1 SAE J1772 Maximum power 11.5KW
    Output current 10A/16A/24A/32A/40A/48A
    Input/output voltage 100~240VAC 50/60Hz1Phase
    Charging port SAE J1772 Type 1
    IP rating IP65
    Operating temperature -25°C-+50°C
    Cable length 7.5M
