KEY FEATURES

Features

Simple appearance

Smooth lines

Simple design

IP54

Ethemet -WlFl-4G

OCPP 1.6J

MAIN PARAMETERS

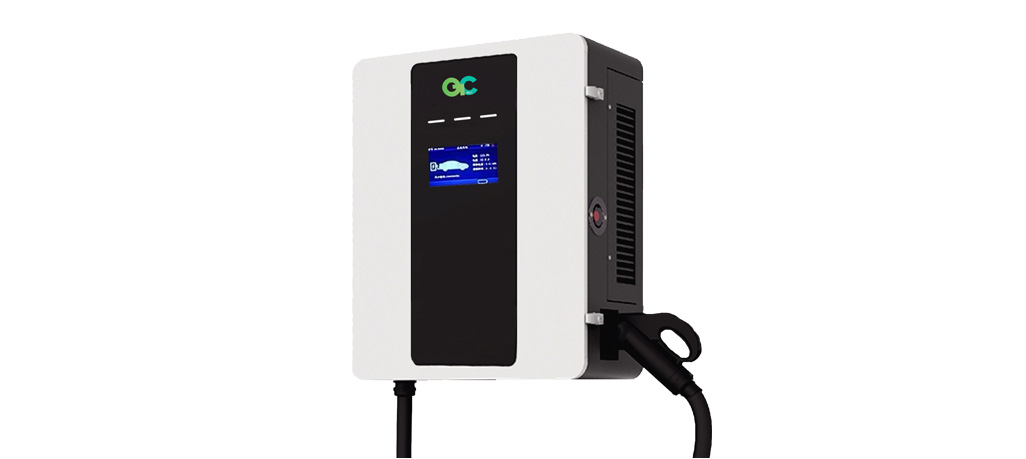

  • VOLTSURGE 30



    This small wall-mounted DC charger is an ideal choice for home, commercial and public charging scenarios with its simple and elegant design, simple and intuitive operation and efficient charging performance

    charging vehicle





    • 30KW|GBT|CCCS2!|CHAdeMO|CCS1|NACS

    • 30KW|GBT|CCCS2!|CHAdeMO|CCS1|NACS

    • Simple and elegant design

    • Durability and low maintenance

    View Video









    Main Parameters

    Category

    ltem

    Technical Parameters

    EV CHARGING SPECIFICATIONS Input voltage 3-phase 480Vac+10%
    luput frequency 50Hz/60Hz
    Rated power 30KW
    Output voltage 200~1000Vdc
    Qutput current 0-100Adc
    Protection grade IP54
    Cable length 5m
    Dimension 670*580*240 mm(L*W*H)
    Network interface Ethemet WlFl4G
    OCPP OCPP 1.6J
    Working temperature (-30°C）+70°C (output degraded above 50°C）
